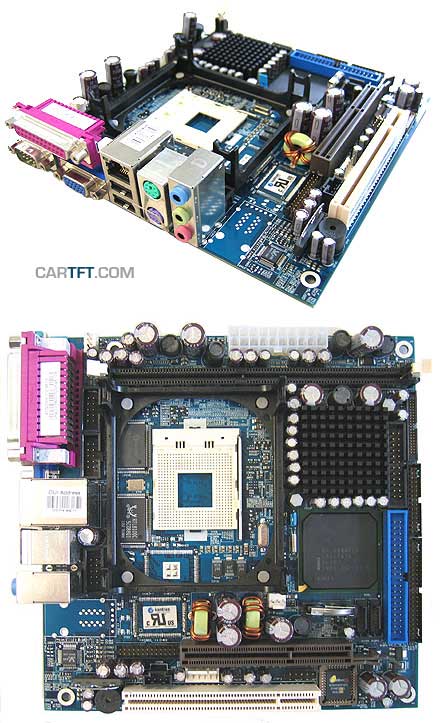

KONTRON 886LCD-M/mITX (for Pentium-M/Celeron-M) [without CF-slot]

PRODUCT IS CURRENTLY NOT AVAILABLE !
KONTRON 886LCD-M/mITX (for Pentium-M/Celeron-M) [without CF-slot]
  • Pentium-M/Celeron-M


- Intel® Pentium® M and Intel® Celeron® M Processors (mPGA478 socket)
- Front Side Bus 400 MHz
- Intel® 855GME + Intel® 6300ESB Embedded Chipset
- Intel® Extreme Graphics 2 Controller
- Flat Panel Display Support
- Dual independent Display Support (incl. 2x LCD)
- Standard AGP slot for easy graphics expansion
- Up to 1GB PC2700/DDR333 SDRAM (incl. ECC)
- 1x 10/100 Mbps Ethernet
- 2x USB 2.0, 4x RS232C
- 2x ATA100 and 2x SATA150 IDE Controller
- On board RAID 0/1 support with SATA harddisk
- AC-97/DD5.1 compliant audio output & on board stereo amplifier.
- Unique API software support for control, setting and m
[more]

Share

CPU Intel Pentium-M/Celeron-M @ 400 FSB
Graphics Intel Extreme Graphics
Formfactor ITX (17x17cm)
RAM 1x DDR 266/333
Audio AC-97/DD5.1
Base Intel ITX
USB 4x USB 2.0
Firewire --
IDE/SATA 2x IDE, 2x SATA
LAN 1x 10/100
Parallel 1x
Serial 4x
no TV-Out
yes PCI
no Mini-PCI
yes IDE
no DVI
yes 800x480 Resolution
no Passive-Cooling
no PCI-Express
no PCMCIA
yes SATA
yes CPU changeable
no Compact Flash
RAM :
  • Description
  • Data sheets and downloads
  • Customer ratings
  • Assembling options


- Intel® Pentium® M and Intel® Celeron® M Processors (mPGA478 socket)
- Front Side Bus 400 MHz
- Intel® 855GME + Intel® 6300ESB Embedded Chipset
- Intel® Extreme Graphics 2 Controller
- Flat Panel Display Support
- Dual independent Display Support (incl. 2x LCD)
- Standard AGP slot for easy graphics expansion
- Up to 1GB PC2700/DDR333 SDRAM (incl. ECC)
- 1x 10/100 Mbps Ethernet
- 2x USB 2.0, 4x RS232C
- 2x ATA100 and 2x SATA150 IDE Controller
- On board RAID 0/1 support with SATA harddisk
- AC-97/DD5.1 compliant audio output & on board stereo amplifier.
- Unique API software support for control, setting and monitoring of onboard functions
- Size: 170 x 170 mm (6.7" x 6.7")

Scope of supply :
- Kontron 886LCD-M/mITX Mainboard



Graphics driver for 800x480 resolution : Here
