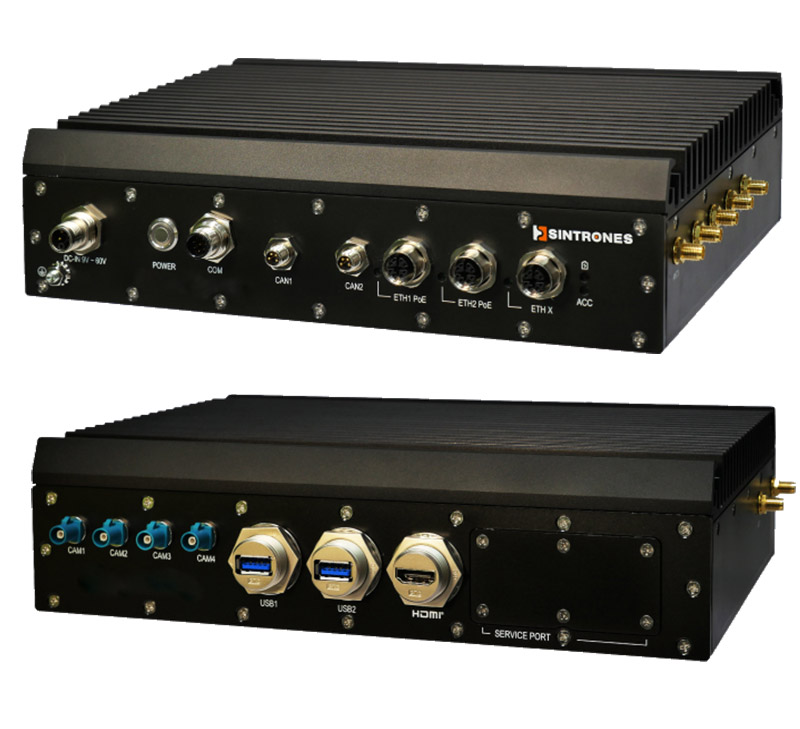

Sintrones IBOX-650P-IP66-JAO64-LE (NVIDIA Jetson AGX Orin Edge AI Fanless, 64GB)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Sintrones IBOX-650P-IP66-JAO64-LE (NVIDIA Jetson AGX Orin Edge AI Fanless, <b>64GB</B>)
  • NVidia Orin Nano !
  • 64GB RAM !
  • IP66 !

  • NVIDIA® Jetson AGX Orin™ SoM with 2048 CUDA Cores
  • IP66 Design (Waterproof and Dustproof) for Harsh Environment
  • 1 x 10 GbE, 2 GbE with PoE via Phoenix Contact® M12 IP67 Connectors
  • 2 x CAN FD
  • 2 x RS-232/422/485*, 4 x DI/4 x DO*
  • Supporting 4 x GMSL-2 Cameras (via FAKRA Connectors)
  • 9 ~ 60VDC Input with Built-in Smart Ignition Power Management
  • -25 ~ 70°C Operating with Fanless Design
  • Patented Design of Emergency Backup Battery (Optional!)
  • The “-LE” Model does not support GMSL-2 camera


[more]

Share

  • NVIDIA® Jetson AGX Orin™ SoM with 2048 CUDA Cores
  • IP66 Design (Waterproof and Dustproof) for Harsh Environment
  • 1 x 10 GbE, 2 GbE with PoE via Phoenix Contact® M12 IP67 Connectors
  • 2 x CAN FD
  • 2 x RS-232/422/485*, 4 x DI/4 x DO*
  • Supporting 4 x GMSL-2 Cameras (via FAKRA Connectors)
  • 9 ~ 60VDC Input with Built-in Smart Ignition Power Management
  • -25 ~ 70°C Operating with Fanless Design
  • Patented Design of Emergency Backup Battery (Optional!)
  • The “-LE” Model does not support GMSL-2 camera


System



Module

  • NVIDIA® Jetson AGX Orin™ 64GB – 275 TOPS
    (2048 CUDA® cores GPU + 12-core Arm Cortex-A78AE CPU + 64 GB LPDDR5)





Security

Security Boot, Arm TrustZone

Interface

- 1 x 10GbE, 2 x 2.5GbE w/ 2 x IEEE 802.3at PoE PSE Class 4 (PoE+ 30 watts)
(3 x Phoenix Contact® M12 X-coded connectors)


- 2 x USB Type-A/IP67 connector for USB 3.2
* One port share 10Gbps bandwidth

- 1 x HDMI Type-A/IP67 connector for HDMI 2.1 output

- 1 x HD Audio from the HDMI

- 1 x M12 A-coded connector for RS-232/422/485

- 2 x M8 A-coded connectors for CAN FD

- 1 x USB Type-C for System Recovery (Device only)

- 4 x FAKRA-Z connectors for GMSL-2 cameras

- 1 x Nano SIM card slot


INTERNAL EXPANSION

  • 1 x M.2 3042/52 Key B slot (USB3.0) with a Nano SIM Card Slot
  • 1 x M.2 2230 Key E slot
    * Thermal solution is required for M.2 5G Module
  • 1 x mPCIc Full size slot (USB.2.0 supported)




STORAGE (Internal)

  • 1 x 64GB eMMC (Built-in within SoM)
  • 1 x M.2 2280 Key M slot supports NVMe SSD (Pre-installed)

Operating System / SDK

NVIDIA® JetPack including Jetson Linux, NVIDIA® development tools

Operating Temp.

25°C ~ 70°C w/0.6 m/s airflow (for barebone system)
*Operating Temperature Varies by Accessories Installed.





Storage Temp.

-40 ~ 85ºC

Relative Humidity 10% RH – 90% RH (non-condensing)
Certification / Standard CE, FCC Class A, E-Mark, ECE R118, EN50155*, EN45545-2 (R25) *On going
Vibration •
  • MIL-STD-810H, Method 514.6, Procedure I, Cat.4 (Operating)
  • IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
Shock MIL-STD-810H, Method 516.6, Procedure I,
Trucks and semi-trailers=15G (11ms) with SSD (Operating)
Ingress Protection

IP66
Power Input
  • 1 x Phoenix Contact® M12 K-coded connector for DC-IN 9~60V
Mechanical Aluminum Alloy
Fanless Passive Cooling Design
Wall Mount
5100 g
300 mm (L) x 190 mm (W) x 77,5 mm (H)
Data sheet Download (PDF)
Data sheet Print view
