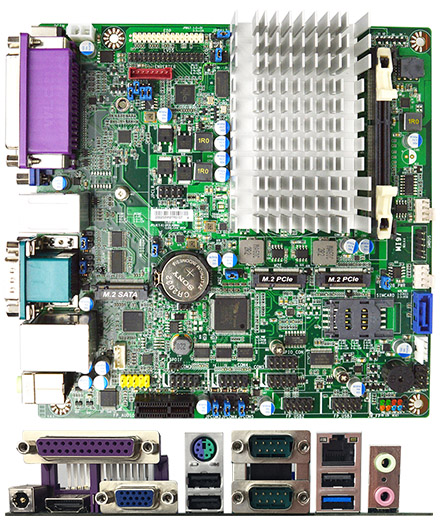

Jetway MI97R-30 Mini-ITX (Intel N2930 BayTrail SoC, 2x COM, 1x Parallel, 24-bit Dual LVDS)

Jetway MI97R-30 Mini-ITX (Intel N2930 BayTrail SoC, 2x COM, 1x Parallel, 24-bit Dual LVDS)
  • N2930 BayTrail !
  • 5x COM !
  • miniITX !

  • 1. Support Intel® Bay Trail N2930 SoC Processor
  • 1* DDR3L 1333MHz SO-DIMM up to 8GB
  • 1* 10/100/1000 Base-TX Ethernet Port
  • 1* HDMI, 1* VGA, 1* LVDS (co-layout with eDP)
  • 5* COM (COM1 support RS232/422/485), 1* USB3.0, 7* USB2.0
  • 1* M.2 M-key 2242/2280 (SATA interface), 1* M.2 E-key 2230 (PCIe x1/USB2.0 interface), 1* M.2 B-key 3042 (USB2.0 interface) W/SIM card holder
  • 1* SATA II (3Gb/s)
  • Support 12V DC-in PWR
  • 1* PCIe x1 slot


Share

279.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (M.2 NVME):

Build/Install:
Model – MI97R30
– MI97R32 (Equipped with TPM2.0 model)
Form Factor – Mini ITX (170 * 170mm)
Processor System – Intel® Bay Trail N2930 SoC Processor
– AMI Flash ROM BIOS
Expansion Slot – 1* M.2 (E-key, 2230. USB2.0 & PCIex1 interface)
– 1* M.2 (B-key, 3042. USB2.0 interface) W/SIM card holder
– 1* PCIe x1 slot
Memory – 1* SO-DIMM DDR3L 1333MHz Single CH SDRAM up to 8GB
Graphics – Intel® HD Graphics, shared memory
– 1* LVDS (Max Resolution: 1920×1200@60Hz)
– 1* eDP (Max Resolution: 2560×1600@60Hz), Co-layout with LVDS
– 1* VGA (Max Resolution: 1920×1080@60Hz)
– 1* HDMI (Max Resolution: 1920×1200@60Hz)
Ethernet – 1* Realtek RTL8119I GbE
Audio – 4 channel HD audio: Realtek® ALC888S
Storage – 1* SATAII
– 1* M.2 (M-key, 2242/2280. SATA interface)
Rear I/O – 1* USB3.0
– 3* USB2.0
– 1* HDMI
– 1* VGA
– 1* PS/2
– 1* RJ45
– 2* COM (COM1 support RS232/422/485)
– 1* Parallel
– Line-out/MIC
– 1* 12V DC-in PWR
Internal Connector – 4* USB2.0
– 3* COM (RS232)
– 1* LVDS (co-layout with eDP)
– 1* SATAII
– 1* SIM card holder
– 1* GPIO (8 bit)
– 1* Audio Header (W/3W Amp.)
– 1* SMBUS
– 1* CPU FAN
– 1* TPM2.0 onboard (MI97R32)
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Power 12V DC-in (2-pin PWR Con)
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, LVD, RoHS, REACH
Temperature – Operating: 0°C ~ 60°C(with 0.7m/s air flow)
– Storage: -20°C ~ 85°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
