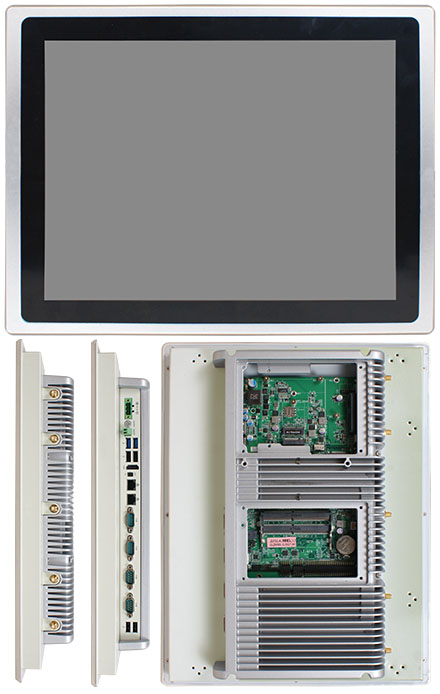

Jetway HPC150R-DCP1135G7 Panel-PC (Intel Tiger Lake i5-1135G7) [15.0" Touch Panel TFT, IP65, 12-36V DC-in]

Jetway HPC150R-DCP1135G7 Panel-PC (Intel Tiger Lake i5-1135G7) [15.0" Touch Panel TFT, <b>IP65, 12-36V DC-in</b>]
  • TigerLake i5 !
  • 15 Zoll !
  • IP65 !
  • 12-36V DC !

  • 15.0” 350 nits TFT LCD with LED backlight
  • 5 Wire Resistive Touch/Anti-Reflection Protection Glass
  • Support Open frameless design
  • Easy HDD and DARM installation, cableless design
  • 12-36V DC-in, with Electrical Over Stress (EOS) and OVP design
  • Front bezel meets IP65-rated protection


Share

1398.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (M.2 NVME):

SSD (2.5"):

OS:

Build/Install:
Display – IP65, NEMA 4 rugged protection, metal front bezel
– 15.0″ With LED Backlight
– 350 nits
– 16.7m display color
– 1024 x 768 @60Hz resolution
– 178°/178° viewing angle (H/V)
– 0.099 x 0.297mm pixel pitch
– 4:3 aspect ratio
– 1000:1 contrast ratio
– 35ms response time
Touch Screen – 5 wires analog resistive type
– 346.0 x 270.0mm ±0.3mm active range
– Transparency 80 ±3%
– Operating force ≦ 100g
– Surface Hardness ≧ 3H (pressure 750g/45°)
– Knock test 10,000,000 times keystrokes
Case – Aluminum panel
– Iron case
– White color
– Spray paint coating requirement
Main System – Intel® Tiger Lake i5-1135G7 2.4GHz/QC processor
– 2* DDR4 SO-DIMM (Max 64GB)
– 256MB SPI Flash ROM
– Watchdog Timer 256 levels, 0~255 sec.
– OS Support Windows 10 / Linux
Expansion – 1* M.2 E key (2230) for WIFI
– 1* M.2 B key (3042/3052/6570) for 4G/5G Module (4pcs Built in Antenna)
Storage – 1* 2.5” SATA HDD
– 1* M.2 M key (2242/2280, SATA/PCI-Ex4)
I/O Connector – 2* USB3.2 (Gen. 2)
– 4* USB2.0
– 2* RS232/422/485
– 2* RS232
– 16bit GPIO
– 1* HDMI
– 1* AT/ATX Mode Button
– 2* RJ45 (1* Intel® I211AT, 1* Intel® I219LM GbE)
– 1* 12~36V DC-in Locking Jack
– 1* Power button
– 1* 2pin Front Power button
Power Input – 12~36V DC-in
– AC version: 100~240V AC-DC 90W power adapter or
– DC version: 12VDC with over current protection fuse
Power Consumption – 45W
Dimensions – 378.00 * 294.00 * 60.00mm
Compliance – CE, FCC, IP65 (Front)
Safety – Shock: 1ms duration
– Vibration: 5~500Hz/1 Grms
Temperature – Operating: : -10°C ~ 50°C
– Storage: -20°C ~ 70°C
Data sheet Download (PDF)
