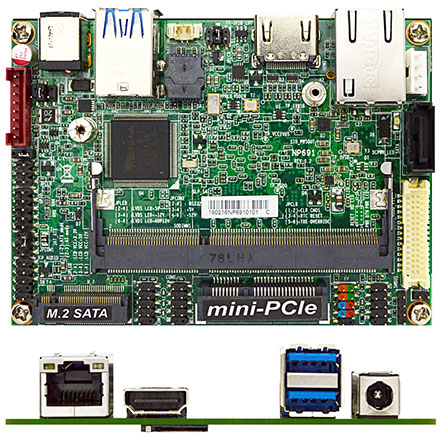

Jetway JNP691N-3350 (Intel Apollo Lake)

The JETWAY JNP691 Series adopts the Intel® Apollo Lake N3350/N4200 SoC processor. JNP691 Series equipped with DDR3L SO-DIMM slot and M.2 (M-key, 2242) which is suitable for most of the applications.

In addition, it offers flexible expansion with mPCIe slot which can connect other add-on modules. JNP691 Series also has two USB 3.0, two USB 2.0, one RS232 and one RS232/422/485 ports. Customers can connect different peripherals to meet their needs. JNP691 Series also support HDMI/LVDS dual display which can be used for standard main board or panel PC. All of the JNP691 Series designs provide rich features with small dimension.

Intel® Apollo Lake N3350/N4200 SoC Processor
Support 1 * DDR3L 1866MHz SO-DIMM up to 8GB
1* GbE, 2* Internal COM ports, 2* External USB3.0 & 2* Internal USB2.0
Support HDMI and LVDS
Support M.2 (M-key, SATA interface, 2242) storage
1 * full size Mini-PCIe slot
12V DC-in power

Model / Part Number
Model	– JNP691-3350	– JNP691-4200
Part Number	– JNP691-3350	– JNP691-4200
Form Factor
Dimensions	– 2.5” (100 * 72mm)
Processor System
CPU	– Intel® Apollo Lake SoC Processor
Core Number	– Dual Core	– Quad Core
Max Speed	– 2.4GHz	– 2.5GHz
Cache	– 2MB
Chipset	– SoC
BIOS	– AMI Flash ROM
Expansion Slot
Mini-PCIe	– 1 (full size)
M.2	– 1 (M-key, SATA interface, 2242)
SIM Card Holder	– 1
Memory
Technology	– DDR3L 1866MHz SDRAM
Max.	– 8GB
Socket	– 1 * SO-DIMM
Graphics
Controller	– Intel® HD Graphics
VRAM	– Shared Memory
VGA	– 0
LVDS	– 1 (Max. Resolution: 1920×1080@60Hz)
eDP	– 0
HDMI 1.4	– 1 (Max. resolution: 3840×2160@30Hz)
Multi Display	– Dual
Ethernet
Ethernet	– 10/100/1000 Mbps
Controller	– 1 * Realtek RTL8111H GbE
Connector	– 1 * RJ 45
Audio
CODEC	– HD Audio: Realtek ALC662VD
Channel	– Line-in, Line-Out, MIC
SATA
Max Data Transfer Rate	– 1 * SATAIII (6.0Gb/s)
Rear I/O
VGA	– 0
HDMI	– 1
Ethernet	– 1
USB	– 2 * USB3.0
Audio	– 0
Serial / Parallel	– 0 / 0
PS2	– 0
DC-input	– 1
Internal Connector
USB	– 2 * USB 2.0
Ethernet	– 0
LVDS / inverter	– 1
eDP	– 0
VGA	– 0
Serial	– 2 (COM2: RS232 & COM1: RS232/422/485)
SATA	– 1
mPCIe	– 1
mSATA	– 0
M.2	– 1 (M-key, SATA interface, 2242)
GPIO	– 1 (8 bit)
Chassis intrusion	– 0
Audio Header	– 1
SMBUS/ I2C	– 1
AT mode	– 1
TPM Header	– N/A
Others	– N/A
Watchdog Timer
Output	– From Super I/O to drag RESETCON#
Interval	– 256 segments
Power Requirements
Input PWR	– 12V DC-in Power
Power On	AT/ATX Supported – AT : Directly PWR on as Power input ready – ATX: Press Button to PWR on after Power input ready
Certifications
Certifications	– CE, FCC, LVD
Environment
Temperature	– Operating: 0°C – 60°C
	– Storage: -20°C – 85°C
Warranty
Warranty	– 2 Years Limited Warranty

Data sheet	Download (PDF)
Data sheet	Print view

Please login for creating product ratings.
