![FleetPC-2 Car-PC Barebone (for Intel Sockel P Mobile CPU, Autostart-Controller, 7-30V Automotive PSU, WLAN) [<b>FANLESS</b>]](http://www.truck-navigator.de/image_db/FleetPC-2c.jpg)
- Assemblation of system (Hardware + Software) -

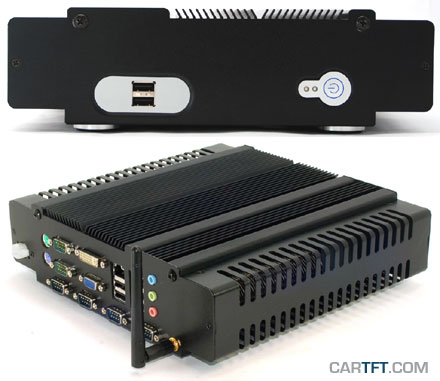

FleetPC-2 Car-PC Barebone (for Intel Sockel P Mobile CPU, Autostart-Controller, 7-30V Automotive PSU, WLAN) [FANLESS]
PRODUCT IS CURRENTLY NOT AVAILABLE !
New: Starting 01.08.2010 the device is equipped with internal WLAN.
This MiniPC was especially designed for fleet applications.

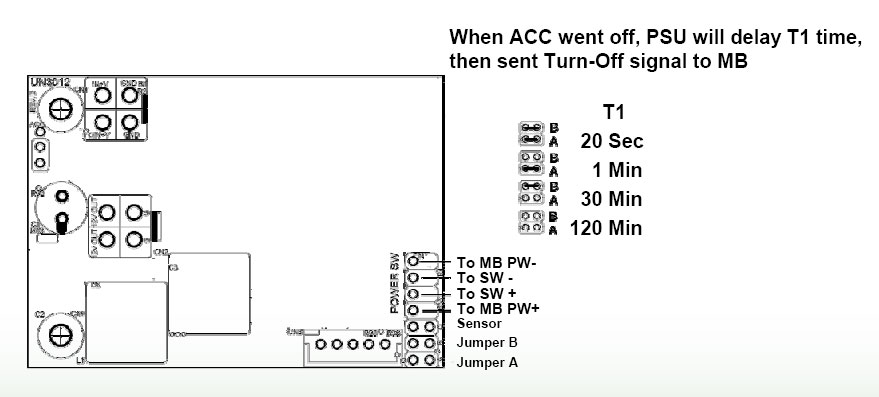

The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.
For a full PC you need in addition :
- Intel Mobile CPU (Sockel P)
- 2.5" HDD/SSD or CompactFlash
- SO-DDR3-RAM
The barebone is completely fanless and can be equipped with an Intel Mobile Sockel P CPU (eg. Intel P8600).
Integrated is the Advantech AIMB-258 Mini-ITX Mainboard with many features and connectors (see data sheet).
Features :
[more]
RAM :
SSD (2.5"):
Build/Install:
SSD (2.5"):
Build/Install:
New: Starting 01.08.2010 the device is equipped with internal WLAN.
This MiniPC was especially designed for fleet applications.
The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.
For a full PC you need in addition :
- Intel Mobile CPU (Sockel P)
- 2.5" HDD/SSD or CompactFlash
- SO-DDR3-RAM
The barebone is completely fanless and can be equipped with an Intel Mobile Sockel P CPU (eg. Intel P8600).
Integrated is the Advantech AIMB-258 Mini-ITX Mainboard with many features and connectors (see data sheet).
Features :
- Fanless
- Intel Sockel P Mobile CPU Support
- 2.5" HDD/SSD and CompactFlash-Slot on bottom side, easy accessable via service slot
- Integrated, intelligent Automotive power supply
- 6x USB, 6x RS232
- 2x Gigabit LAN
- DSUB-15 VGA + DVI
- Watchdog
- WLAN (VIA 6656)
